API 6D Ball Valve & LNG Seal

-100℃~180℃

Metal face spring PTFE seals supplier

Metal face spring PTFE seals supplier

The FHB seal design of the spiral spring combined arc lip, and the pressure comes from the inside.

  • Brand:

    JST Seals
  • Item NO.:

    FHB
  • Payment:

    T/T
  • Product Origin:

    China
  • Shipping Port:

    Guangzhou
  • Order(MOQ):

    50
  • Product Detail

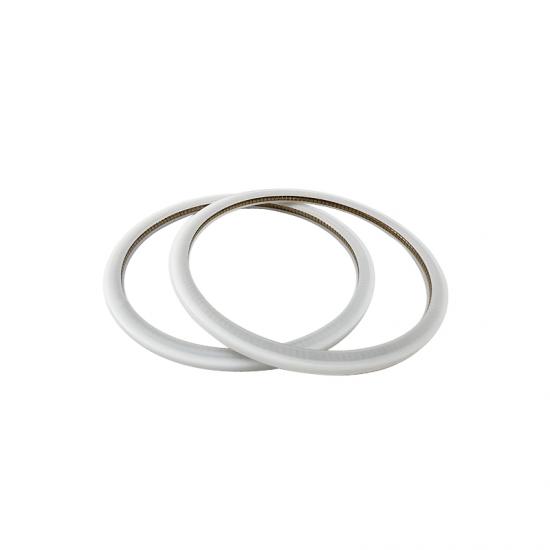

Metal face spring PTFE seals supplier


The helical spring engineered static face seal design of the spiral spring combined arc lip, and the pressure comes from the inside.


The Helical spring design of the end seal provides a high load stainless steel exciter. The spring is used to seal the shaft and piston radially for low-temperature propellant sealing. Coil springs are used for chemical corrosion or extreme high or low temperature sealing requirements.


With high spring load, it is the best choice for low temperature, gas and low pressure static flange sealing applications.


Applications: valves, compressor cylinders, cryogenic equipment, rotary joints, etc.


Advantages:

1. Passed BS6364 test (-196℃);

2. High load helical wound spring with small deflection range;

3. Exquisite structure, can be installed in the standard O-ring groove;

4. Excellent chemical corrosion resistance and heat resistance, dimensional stability;

5. Greatly improve the sealing performance and service life;

6. Low friction coefficient, very smooth even in very low speed applications.

Working Conditions
Material
Temperature range
Pressure
Medium
Sealing ring: Teflon+carbon fiber
Spring: 316SS
-100~180℃
150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB LNG, Low temperature ethylene


FHB For valve end face

Groove DWG:

Temperature Rating

JST Series

Spring

0~900(LBS)

900~2500(LBS)

G=(OD-ID)/2

Standard CS:G=(OD-ID)/2

L Value

(-100℃~180℃)

FHB

Golden Elgiloy

3.1

4.8

4.7

7.1

6.1

9.5

6.9

10
