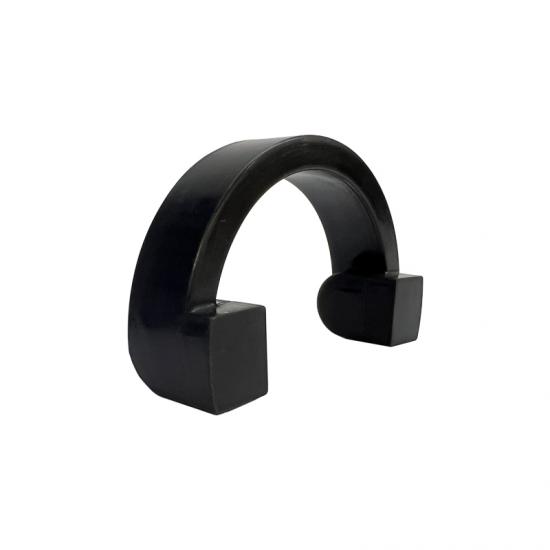

Oil & Gas Outer BOP Seal

JST's Inner and Outer BOP Seals could be made according to customer requirements. These seals are used in various type of Blow Out Preventors (BOP's).

Rod seals are static seals installed in glands or housings to prevent the leakage of fluid from within a cylinder to the outside as the rod cycles.

Wipers are installed in the sealing configurations of hydraulic cylinders to prevent contaminants such as dirt, dust and moisture from entering the cylinder as they retract back into the system.

P seal is constructed from an elastomer with back up rings for anti-extrusion. Energized by the injection of sealant, it is a static seal that is used to seal rough casing and tubing. Backup rings are available in Mesh Stainless Steel or Solid Carbon Steel.

JST's back up ring compensate for large temperature fluctuations. Using Back-up Rings allows O-Rings to be utilized in higher pressure applications, where larger extrusion gaps are required and where there are reciprocating or rotating movements. Back-up Rings are protective and supporting elements with no sealing function. The back up ring material could be  PEEK, modified PTFE.

Rotary shaft seals with PTFE ring have been specially developed for use in harsh conditions. They are used when shaft seals with classic elastomer lips reach their performance limits.

Dovetail groove is used to put the O-ring or elastomer dovetail seal during installation. This groove is not common because it is more expensive to machine, but this dovetail groove can avoid seal extrusion out.

T-Seal is a compact three-piece double acting seal composed of a T shaped elastomeric element and two rigid anti-extrusion rings. These compact sealing elements are designed for installation in simple O-ring grooves and are often used to modify faulty O-rings.
