Hydraulic DKBI wiper seal

Hydraulic DKBI wiper seal

DKBI wipers are installed in the sealing configurations of hydraulic cylinders to prevent contaminants such as dirt, dust and moisture from entering the cylinder as they retract back into the system.

  • Item NO.:

    ME1/DKBI
  • Payment:

    T/T
  • Product Origin:

    China
  • Shipping Port:

    Guangzhou
  • Order(MOQ):

    50
  • Product Detail

Hydraulic DKBI wiper seal

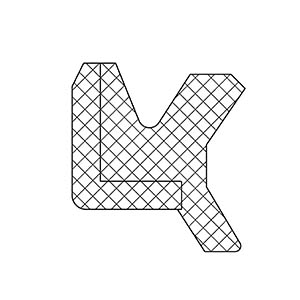

DKBI is a wiper with metal frame, It is molded on the metal frame with NBR90 or PU and fits closely with the assembly hole. In addition, it has good dust-proof sealing ability, can be waterproof and submerged, and has an inner lip to reduce oil film leakage. It is a series sealing system with dustproof and high reliability.


DKBI excavator cylinder seals are installed in the sealing configurations of hydraulic cylinders to prevent contaminants such as dirt, dust and moisture from entering the cylinder as they retract back into the system.

It can also prevent scratches, protect the metal surface of the piston rod, prolong the service life of the seal, and has the function of oil scraping. It is mainly used for dust prevention of construction machinery cylinders.


Advantages:

1. Simple groove
2. Easy installation
3. Dust and seal double-acting
4. Can reduce remaining oil film and prevent leakage


Working Conditions
Working Temperature
Working Speed
Working Medium
Material
-35℃ to +100℃ ≤1m/s
Mineral oil, gas, water
PU+Iron



Size:

Diameter: Diameter: φ18-φ140mm

Φd ΦD h H
18 30 6 9
20 32 6 9
22 34 6 9
25 37 6 9
30 42 6 9
32 52 8 11
34 46 7 10
35 47 7 10
40 52 7 10
45 57 7 10
50 62 7 10
50 62 8 12
55 69 8 11
60 74 8 11
65 79 8 11
65 79 8 12
70 80 7 10
70 84 8 11
75 89 8 11
80 94 8 11
80 94 8 12
85 99 8 11
90 104 8 11
95 109 8 11
100 114 8 11
105 121 9 12
110 126 9 12
120 136 9 12
130 146 9 12
135 150 8 11
140 160 10 14
