Spring energized valve stem packing contributes to the overall performance of industrial operations. They serve the vital task of keeping oil and liquids in while keeping contaminants out.
Item NO.:
ESHPayment:
T/TProduct Origin:
ChinaShipping Port:
GuangzhouOrder(MOQ):

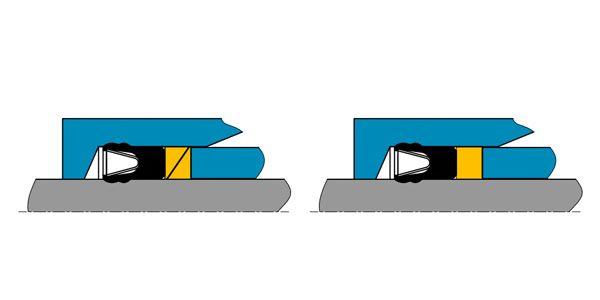

50PTFE Spring energized valve stem packing
(d) an adapter ring having a generally T-shaped cross-sectional configuration and extending into a supportive relationship with the lip seal ring to prevent dislocation of said seal ring when the packing assembly is in functional position between a valve stem and a surrounding valve element, and said valve stem is cycled in a translatory manner.
JST’s spring energized seals comply with API Q1 specification and can be used for API 6A valves and API 6D ball valves.
 |
Advantages:
1. Meet API standards for design, materials, function and performance |
|
Working Conditions |
||||
|
Working Pressure |
Working Temperature |
Working Medium |
Material |
|
|
5000~15000PSI |
PU, LU, PX, LX |
Hydraulic fluids, crude oil, sour oil/gase, H2S, salty water |
PEEK, Elgiloy/SS steel, Filled PTFE | |
Application Suggestion:
FLS valve, FLS-R valve
Size:
From 2-1/16” and 7-1/16”
|
||||||
|
Pressure Level psi |
Inch | MM | ||||
| Stem size | Outer diameter of groove | H | Stem size | Outer diameter of groove | H | |
| 3K.5K.10K.15K | 1.00 | 1.75 | 0.71 | 25.40 | 44.40 | 18.00 |
| 3K.5K.10K | 1.00 | 1.79 | 25.40 | 45.40 | ||
| 5K.10K.15K.20K | 1.25 | 2.00 | 31.75 | 50.80 | ||
| 5K.10K.15K.20K | 1.25 | 2.04 | 31.75 | 51.80 | ||
| 5K.10K.15K.20K | 1.50 | 2.29 | 38.10 | 58.10 | ||
| 5K.10K | 1.61 | 2.38 | 41.00 | 60.50 | ||
| 15K.20K | 1.75 | 2.50 | 44.45 | 63.58 | ||
| 5K.10K | 2.00 | 2.70 | 50.80 | 70.80 | ||
| 10K | 2.00 | 3.00 | 50.80 | 76.1 | ||
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
