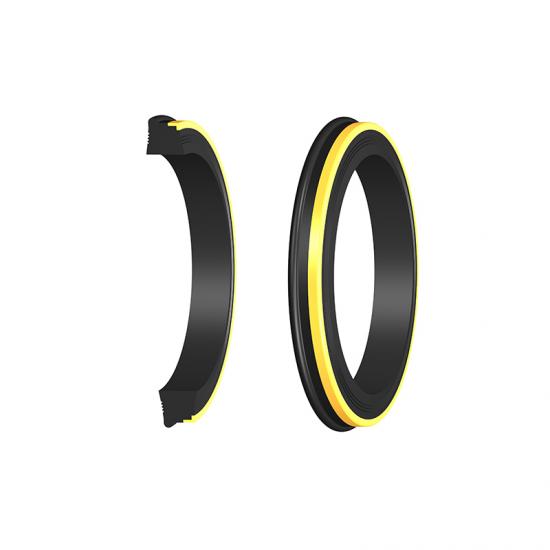

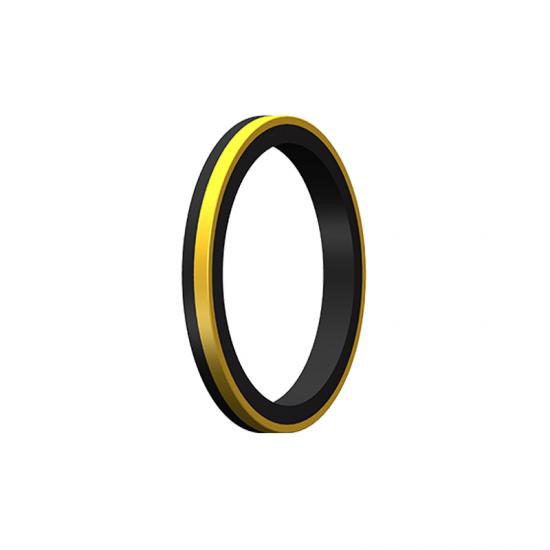

Weco hammer union seals for Oil & Gas

Weco hammer union seals for Oil & Gas

Hammer Union Seals help to prevent leakage in hammer union pipe connections and are generally applied in applications within the Chemical Processing, Offshore Drilling, Petrochemical, and Water and Gas industries.


  • Brand:

    JST Seals
  • Item NO.:

    EWT
  • Payment:

    T/T
  • Product Origin:

    China
  • Shipping Port:

    Guangzhou
  • Order(MOQ):

    100
  • Product Detail

Weco hammer union seals for Oil & Gas


The hammer union sealing ring is used for one-way / high-pressure / static sealing. It is used for working conditions with pressure outside. It is widely used in various static sealing and slow speed sealing occasions. It has a good sealing effect for light gas / refrigerant and vacuum, and can also be used in occasions with poor surface finish.


Hammer Union Seals help to prevent leakage in hammer union pipe connections and are generally applied in applications within the Chemical Processing, Offshore Drilling, Petrochemical, and Water and Gas industries.


JST offers two lines of hammer union seals, one from elastomer, another one from elastomer reinforced with anti-extrusion ring which is normally used for high pressure.


JST's hydraulic hammer union seals have a variety of configurations and materials to choose from, including NBR, HNBR and Viton.

For cold weather applications we offer both a low temperature rated (-50°C to +120°C) NBR and HNBR elastomers.

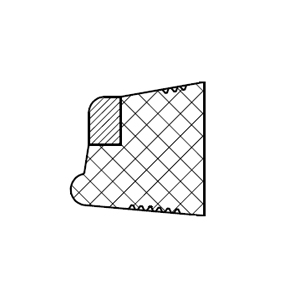

In addition to standard molded rubber seals, the brass or stainless steel anti-extrusion ring can also reinforce hammer union seals.


It can fully meet the specific performance requirements of your demanding operating environment.


Advantages:

1. Oil resistance

2. Hydrogen sulfide corrosion resistance

3. High wear resistance and aging resistance

4. Good pressure bearing and sealing performance


Working  Conditions
Temperature range
Pressure
Medium
-46℃~+121℃
≤155MPa
Drilling fluid, acidizing fluid, fracturing fluid, 15% hydrochloric acid

Size:
1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”, 3”, 4”
